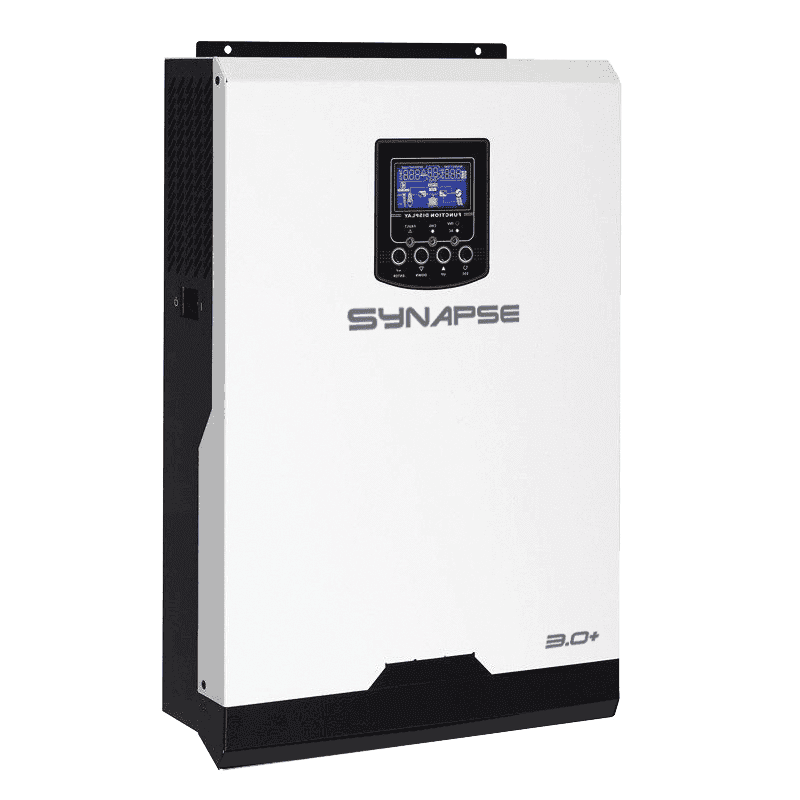

The Synapse 3kVA 24V Inverter (3.0+) is a compact, reliable, and cost-effective off-grid inverter built for homes, cabins, and backup power applications. Designed to work with solar panels, batteries, and/or grid input, it features a pure sine wave output, making it safe for sensitive electronics.
Whether you’re powering essentials during outages or running an off-grid cabin, this inverter offers a smart, easy-to-use power solution.
⚡ Key Features:
-
✅ Rated Output Power: 3kVA (2400W)
-
✅ 24V DC Battery Input
-
✅ Built-in 50A PWM Solar Charge Controller
-
✅ Pure Sine Wave Output – Protects Sensitive Equipment
-
✅ Supports Solar, Grid, or Generator Input
-
✅ LCD Display + LED Indicators
-
✅ Selectable Charging Current
-
✅ Configurable AC/Solar Charging Priority
-
✅ Compact Wall-Mount Design
-
✅ Overload, Overtemp, and Short-Circuit Protection
📐 Technical Specifications:
-
Model: Synapse 3.0+
-
Rated Power: 3kVA / 2400W
-
DC Input Voltage: 24V
-
AC Output Voltage: 230V ±10%
-
Output Waveform: Pure Sine Wave
-
Output Frequency: 50Hz / 60Hz (auto-detect or set)
-
Max PV Array Power: 1000W
-
PV Operating Voltage Range: 32–72V DC
-
Max Solar Charge Current: 50A (PWM)
-
Max AC Charging Current: 20A
-
Combined Charging Current: Up to 70A
-
Transfer Time: ≤10ms
-
Battery Type Compatibility: Lead Acid / AGM / Gel
-
Display: LCD + LEDs
-
Dimensions: 300 × 280 × 115 mm
-
Weight: 6.5 kg
-
Operating Temperature: 0°C to 55°C
-
Cooling: Forced Air Fan
-
Mounting: Wall-mount
🏡 Applications:
-
Off-grid homes and cabins
-
Essential load backup during power outages
-
Small shops and telecom sites
-
Remote security or lighting systems
-
Anywhere grid power is unreliable or unavailable
📦 What’s in the Box:
-
Synapse 3kVA 24V Inverter (3.0+)
-
User Manual
-
Mounting Hardware
-
Cables & Connectors
-
Warranty Card
🛡️ Warranty & Protection:
-
Standard Warranty: 1 Year
-
Protections: Overload, short-circuit, battery over/under voltage, overtemperature
🔋 Why Choose Synapse 3.0+?
-
Affordable off-grid inverter with solid performance
-
Simple setup, no app or WiFi required
-
Safe for TVs, laptops, fridges, and more
-
Proven durability in African and Asian markets
-
Excellent value for small solar power setups
