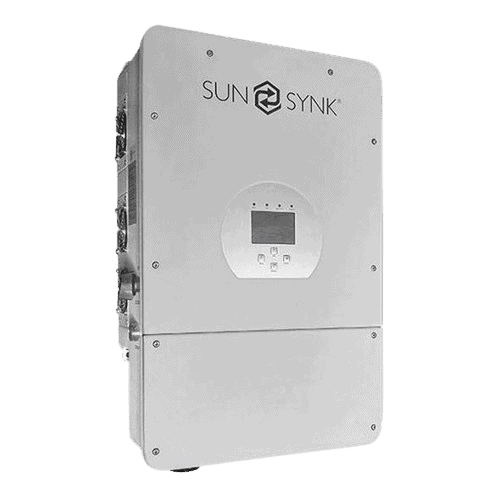

The Sunsynk 3.6kVA Hybrid Inverter (Model: SUN-3.6K-SG03LP1-EU) is a next-generation smart inverter designed to manage solar, grid, and battery storage seamlessly. It offers on-grid, off-grid, and hybrid capability, making it perfect for residential and light commercial installations looking to maximize energy self-reliance.
Packed with advanced features like built-in WiFi, mobile app monitoring, parallel stacking, and smart load control, this inverter delivers unmatched flexibility and control—all in a compact, high-efficiency package.
⚡ Key Features:
-
✅ Rated Output Power: 3.6kVA (single-phase)
-
✅ Built-in MPPT Controller (120A) – up to 6kW PV input
-
✅ Pure Sine Wave Output: Protects sensitive electronics
-
✅ Lithium & Lead-Acid Battery Compatible (48V)
-
✅ Grid-Tied + Off-Grid Operation
-
✅ WiFi Monitoring Built-In (iSolarCloud App)
-
✅ Time-of-Use Functionality: Maximize savings with smart scheduling
-
✅ Generator Compatible + Parallel Capable
-
✅ Remote Firmware Updates
-
✅ Fanless Design (Silent Operation)
🔋 Technical Specifications:
-
Model: SUN-3.6K-SG03LP1-EU
-
Inverter Type: Hybrid (Grid-Tied + Battery + Off-Grid)
-
Rated Output Power: 3.6kVA
-
Max AC Output: 3.6kVA / 3.6kW (PF 1.0)
-
Output Voltage: 230V AC ± 2%
-
Battery Voltage: 48V
-
Max PV Input Power: 6000W
-
Max PV Input Voltage: 500V DC
-
MPPT Voltage Range: 125V – 425V
-
MPPTs / Strings per MPPT: 2 / 1
-
Max Charge/Discharge Current: 120A
-
AC Grid Input: 230V AC, 50/60Hz
-
Switch Time (UPS Mode): <10ms
-
Communication Ports: RS485, CAN, WiFi
-
Dimensions: 330 × 580 × 232 mm
-
Weight: 20 kg
-
Operating Temp: -25°C to +60°C
-
Cooling: Natural convection (fanless)
-
Certifications: IEC 62109-1/2, G99, NRS097-2-1, CE
🛠️ Applications & Use Cases:
The Sunsynk 3.6kVA Hybrid Inverter is perfect for:
-
✅ Residential homes wanting to reduce grid dependence
-
✅ Small business systems with solar + battery
-
✅ Solar backup power systems
-
✅ Time-of-use power cost management
-
✅ Off-grid cabins with lithium batteries
🌍 Smart Solar. Zero Compromise.
This inverter is designed to:
-
Maximize PV utilization
-
Minimize grid draw
-
Optimize battery charge cycles
-
Enable power autonomy during outages
You can monitor everything via the Sunsynk app or iSolarCloud, including solar production, battery levels, and consumption—all in real-time.
✅ Why Choose Sunsynk?
-
Globally trusted solar brand
-
Industry-best support & mobile app
-
Built-in future-ready features
-
Great for retrofits or new installs
-
Affordable high-performance hybrid solution
