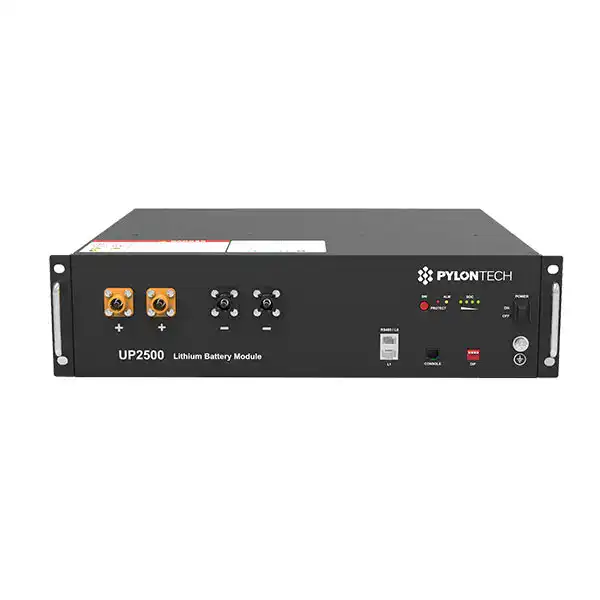

Pylontech UP2500 24V 2.84kWh Lithium Battery – LiFePO₄, Scalable, Long Life

$1,050.00

2.84kWh 24V lithium battery with 6000+ cycles, BMS, and modular scalability. Ideal for solar, backup, and off-grid systems.

Category: Tag: Brand:

The Pylontech UP2500 is a 24V 2.84kWh LiFePO₄ lithium battery engineered for residential and small commercial energy storage. With 6000+ cycle life, a smart BMS, and support for parallel expansion, it’s the go-to solution for off-grid, hybrid, and backup power setups.

Its modular 24V design makes it ideal for pairing with Synapse, Deye, Axpert, Victron, and other 24V inverters in both new and retrofitted solar systems.

🔋 Key Features:

  • ✅ Battery Capacity: 2.84kWh / 24V

  • ✅ Chemistry: LiFePO₄ (Lithium Iron Phosphate)

  • ✅ Cycle Life: >6000 cycles @ 90% DoD

  • ✅ Built-in BMS – full system protection

  • ✅ Modular Design – Up to 20 units in parallel

  • ✅ Wide Compatibility – Works with all major 24V inverters

  • ✅ Rack or Wall-Mount Options

  • ✅ Safe, Stable & Maintenance-Free

📐 Technical Specifications:

  • Model: UP2500

  • Nominal Voltage: 25.6V

  • Nominal Capacity: 110Ah

  • Usable Energy: 2.56kWh (90% DoD)

  • Max Continuous Discharge Current: 100A

  • Max Charge Current: 100A

  • Parallel Capability: Up to 20 units

  • Communication: RS485 / CAN

  • Dimensions: 442 × 420 × 161 mm

  • Weight: 24 kg

  • Mounting Type: Rack or wall-mount

  • Cycle Life: >6000 cycles @ 90% DoD

  • Certifications: UN38.3, IEC62619, CE, UL1973

  • Operating Temp (Charge): 0°C to 50°C

  • Operating Temp (Discharge): -10°C to 50°C

⚙️ Compatible With:

  • Synapse 3kVA/5kVA inverters

  • Deye hybrid inverters (24V models)

  • Axpert VM series

  • Victron 24V systems

  • Must and Mecer inverters

  • Many other 24V inverters with CAN/RS485 support

📦 What’s Included:

  • 1x Pylontech UP2500 24V Lithium Battery

  • Mounting hardware

  • Communication cable (RS485/CAN)

  • User manual

  • Warranty card

🛡️ Warranty & Quality:

  • Warranty: 7 Years (extendable to 10 with registration)

  • Certifications: UN38.3, IEC62619, CE, UL1973

  • Protection: Over-voltage, under-voltage, over-temp, short-circuit, cell balancing

💡 Why Choose Pylontech UP2500?

  • Field-proven reliability across thousands of global installs

  • Works in harsh environments and variable weather

  • Safer than traditional lithium chemistries (LiFePO₄)

  • Easy to scale up as your energy needs grow

  • Long-term investment with >15-year design life
